300 x 300 x 75 mm
For installation into existing grass areas, soil and onto a prepared base
Can be top dressed with gravel, sand, soil or a mixture of these
2-tier design suppresses resurgence of mud from below. Special openings ensure effective drainage.
Grass grows quickly back through the perforations in the tile
Large ground anchors ensure best possible fixing, even in poor ground or under heavy loads
Material:
PE
Colour:
Black
Closed surface area:
50% + 50% in two tiers
Surface structure:
raised profile for grip / drainage channels
Load bearing capability:
up to 100 tonnes/m²
Weight per tile:
approx 515g
Dimensions (tile):
300 x 300 x 75 mm
Dimensions (mat):
121 x 91 cm
Area per mat:
approx 1.10 m²
Weight per mat:
6.2 kg
No. of mats per pallet:
50
Surface area per pallet:
approx 55 m²
Weight per pallet:
approx 320 kg
Height per pallet:
approx 218 cm
Resistant to oil, solvents, salt water, most acids
UV and frost resistant
Do not rot
NSN
5680-99-676-6061

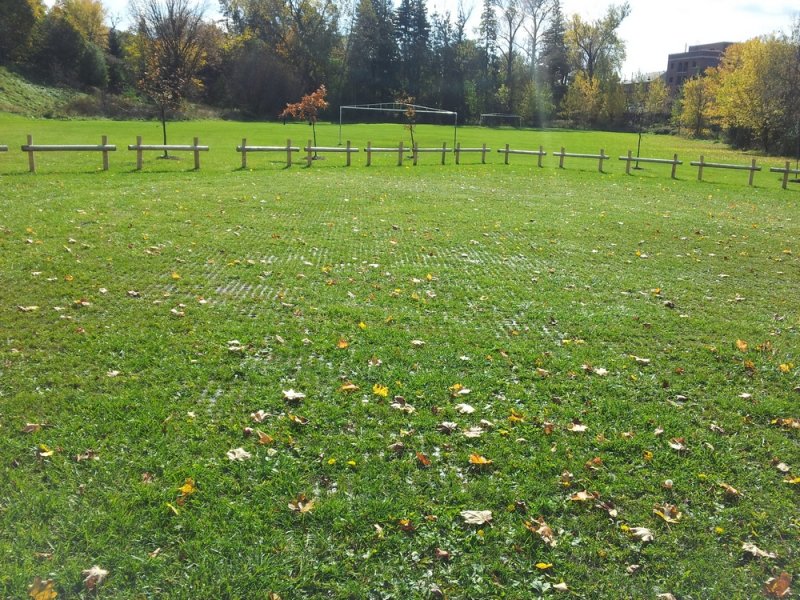

PERFO-AK can be used on existing grass areas for grass reinforcement or compacted into crushed stone for porous/permeable pavement applications.

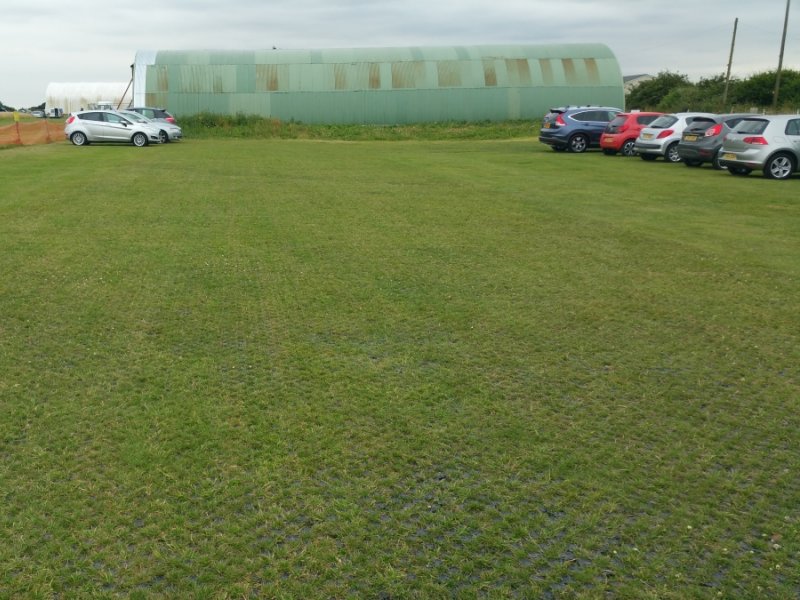

Typical applications include paths, parking areas, tracks, aircraft parking & taxiways, helipads and equine paddocks. PERFO-AK tiles are also used extensively for agricultural applications for both livestock and vehicles.
Installation is normally carried out using a min 5 tonne vibro-roller and motorised rammers or larger vibrating plates over 500kg. Smaller areas can be installed with rammers and large wackers only.
PERFO tiles are designed to cut into the existing turf and therefore when installed there is no edge or voids to backfill.

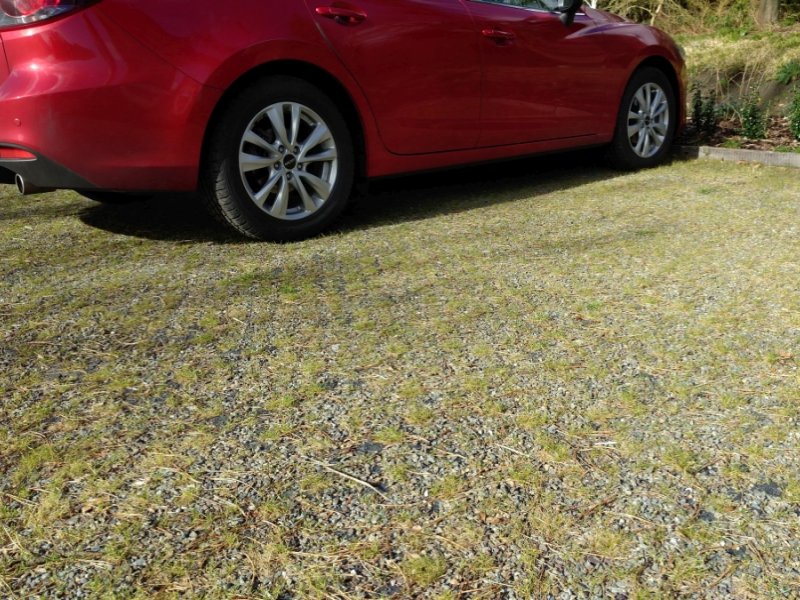

PERFO-AK tiles are used extensively in a crushed stone base with a sub-base for frequent use permeable parking areas.
