405 x 405 x 37 mm
Single 200 x 200 mm element also available
For installation in existing grass areas with or without a sub-base
Simple and quick installation
Grass grows quickly back through the perforations in the tile
Suitable for medium loads
Material:
PE / PP
Colour:
Black
Closed surface area:
75%
Surface texture:
raised points for grip
Load bearing capability:
approx 60 tonnes/m²
Weight per tile:
approx 900g
Dimensions (tile):
405 x 405 x 37 mm
Dimensions (mat):
121 x 121 cm
Area per mat:
approx 1.47 m²
Weight per mat:
8.1 kg
No. of mats per pallet:
55
Surface area per pallet:
approx 80 m²
Weight per pallet:
approx 460 kg
Height per pallet:
approx 220 cm
Resistant to oil, solvents, salt water, most acids
UV and frost resistant
Do not rot
NSN (4 element combi tile)
5680-99-360-1756
NSN (single element tile)
5680-99-226-0411
NSN (single element white tile)
5680-99-348-4129

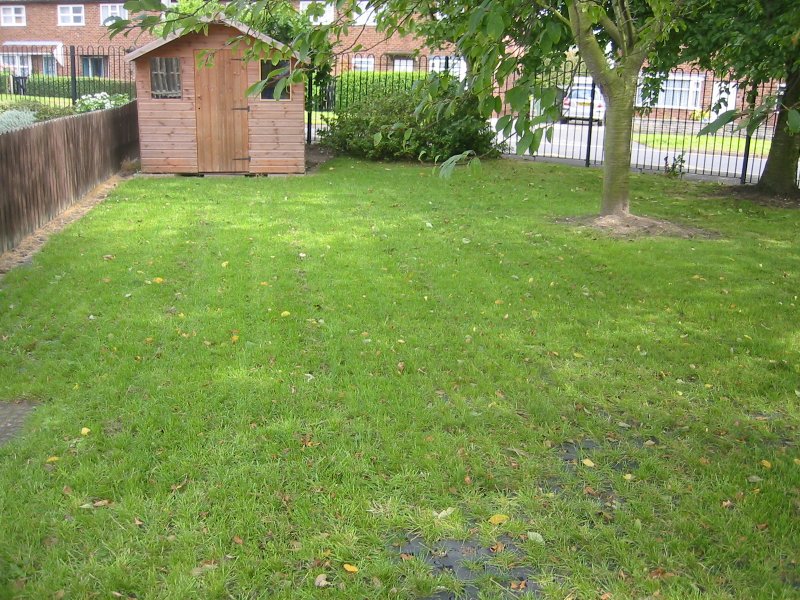

PERFO-SD is best used on existing grass areas for grass reinforcement.

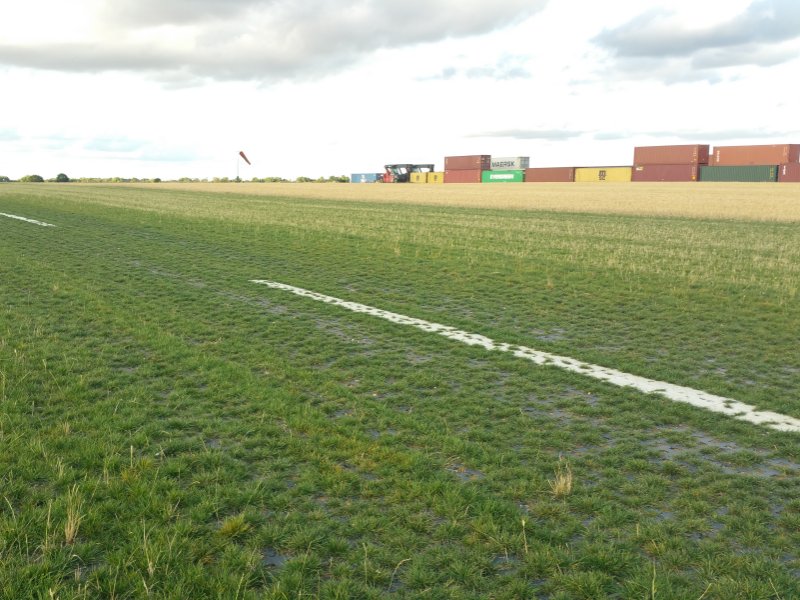

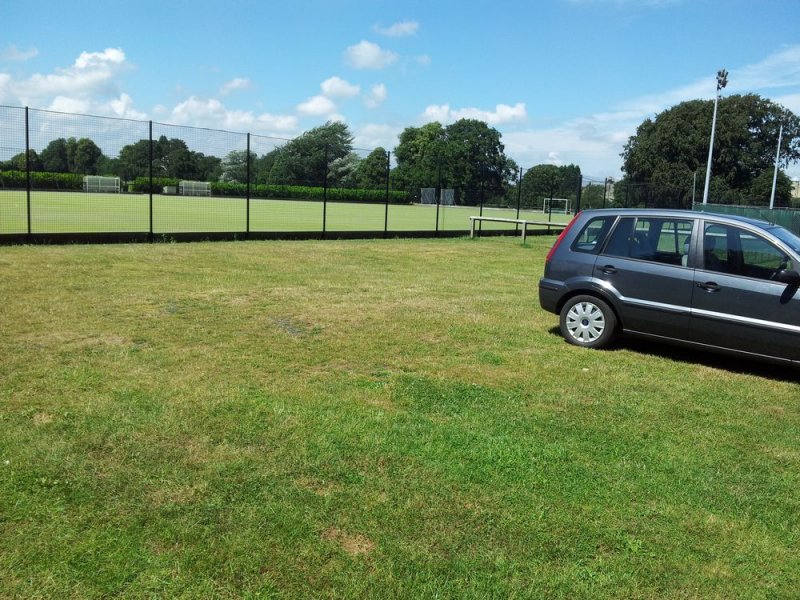

Typical applications include pedestrian paths, light use parking areas, aircraft runways & taxiways, helipads and equine.
The SD tiles with their 75% closed and smooth top surface are also ideal for mobility paths and wheelchair access.
Installation is normally carried out using a min 3.5 tonne vibro-roller, although smaller areas can be installed using motorised rammers and 500kg or larger wackers.
PERFO tiles are designed to cut into the existing turf and therefore when installed there is no edge or voids to backfill.
